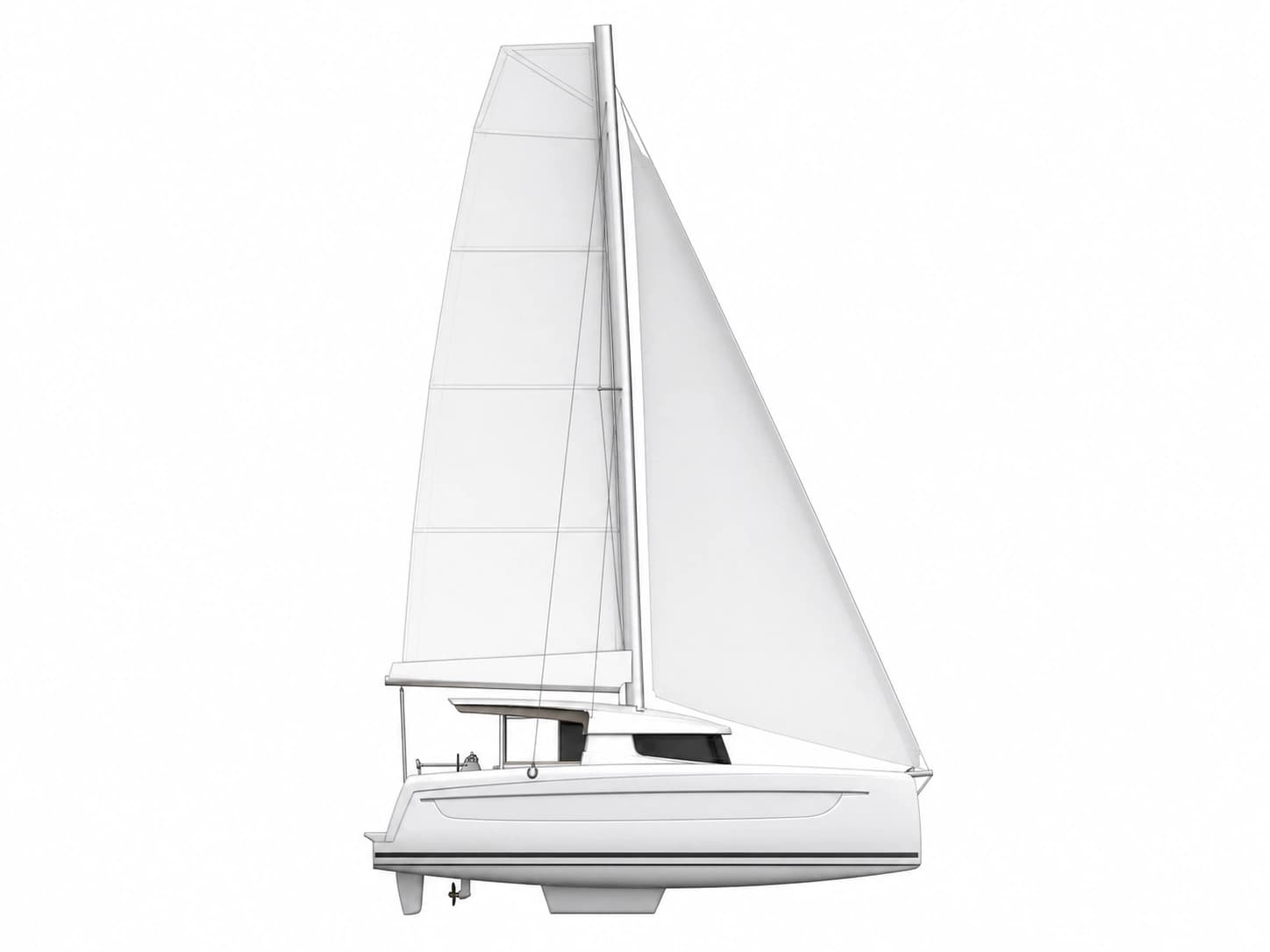

Manufacturer design renderings and arrangement drawings. Images: Bali.
About the BALI 4.3
The 2026 BALI 4.3 is a new-generation design, distinct from earlier boats carrying the same model name; their layouts and details should not be assumed interchangeable. Catana’s R&D team developed the model, with Xavier Faÿ as naval architect and PIATON BERCO responsible for the interiors. Published dimensions list a 13.02 m hull and 13.98 m overall length.

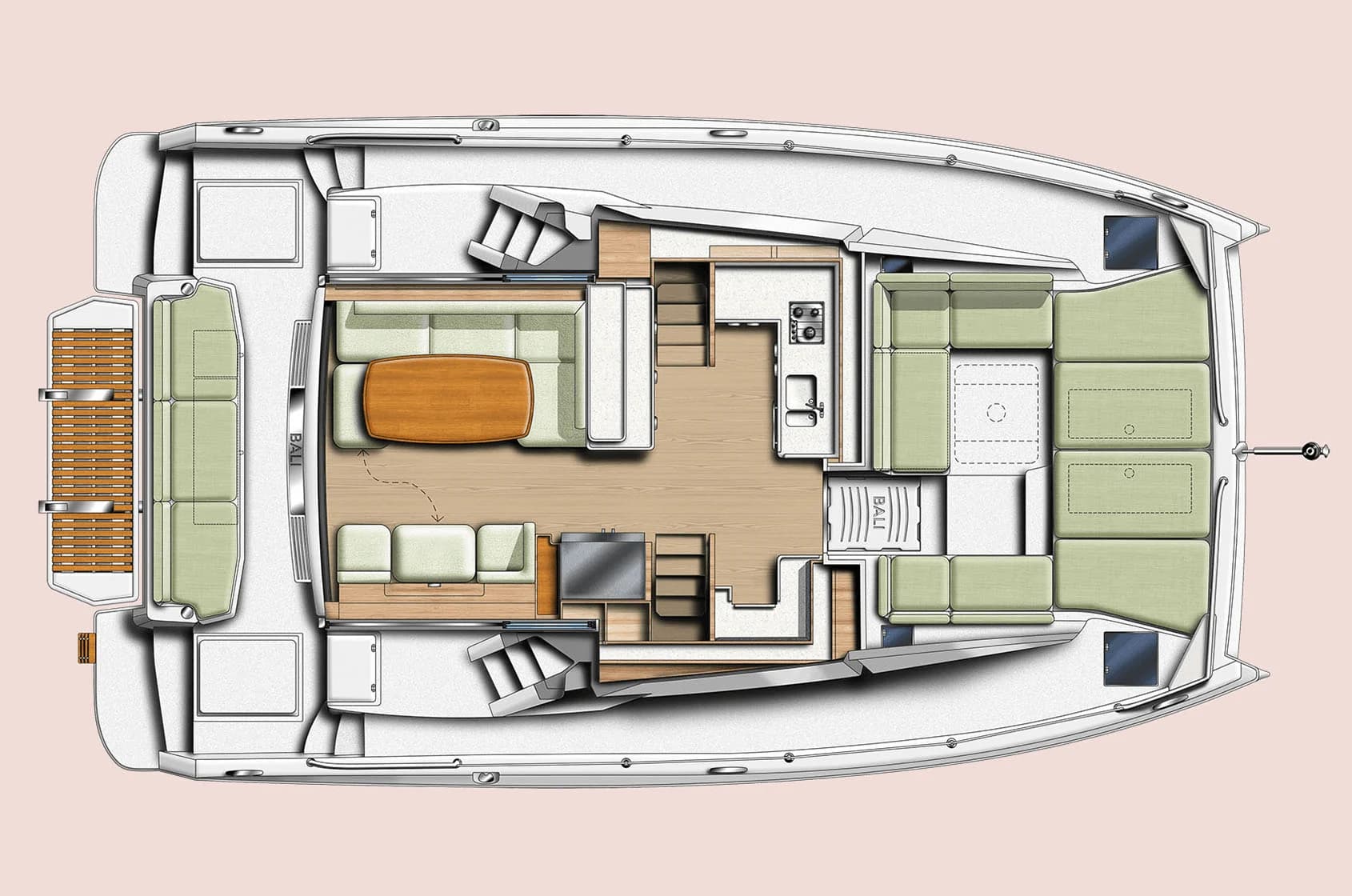

Living space centers on the tilting saloon door, which opens aft to the cockpit, while a separate forward door connects the saloon directly to the rigid bow cockpit. A central galley keeps meal preparation within the shared living area. This forward access is a defining 4.3 feature; it should not be generalized to every BALI model.

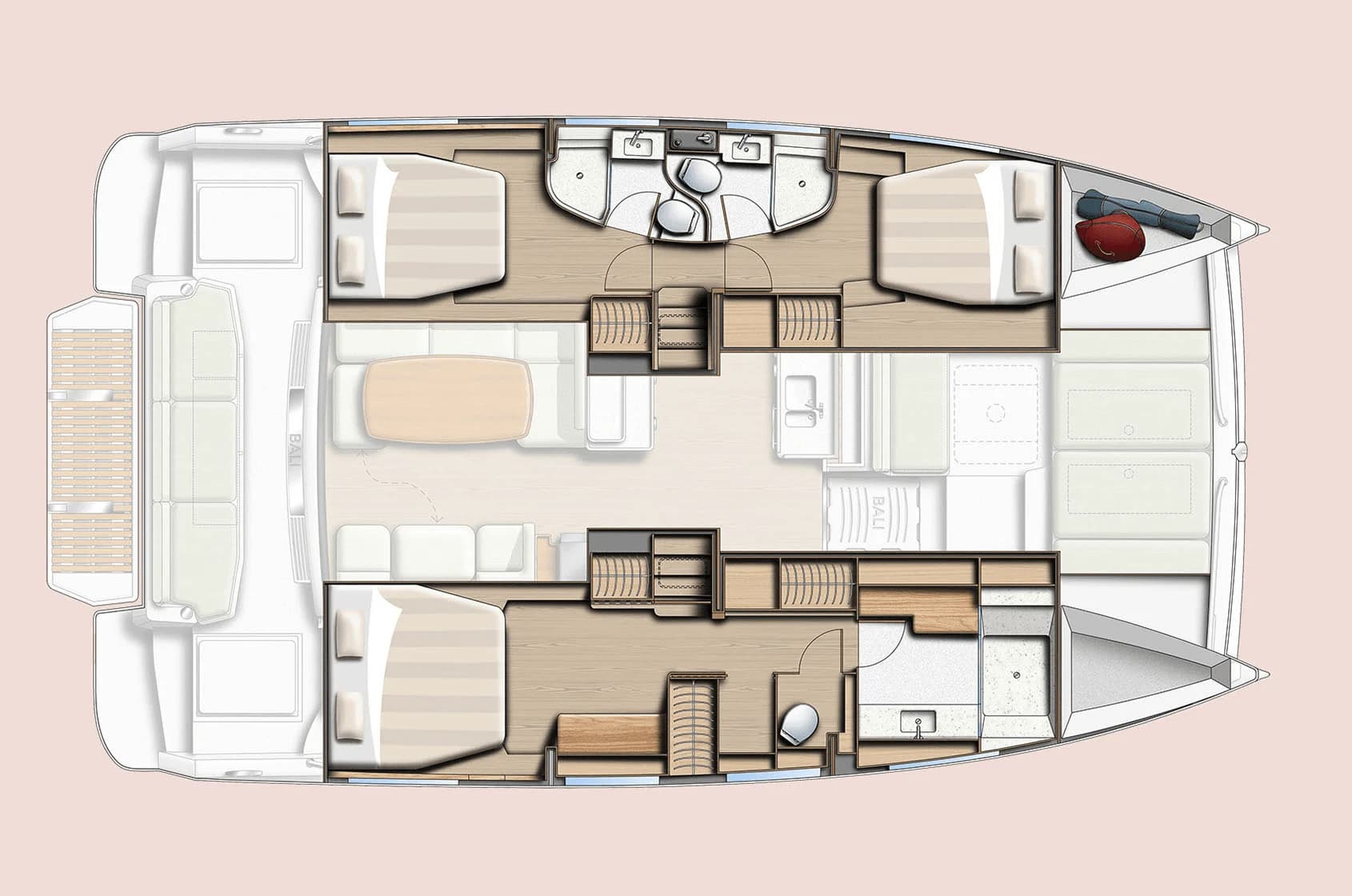

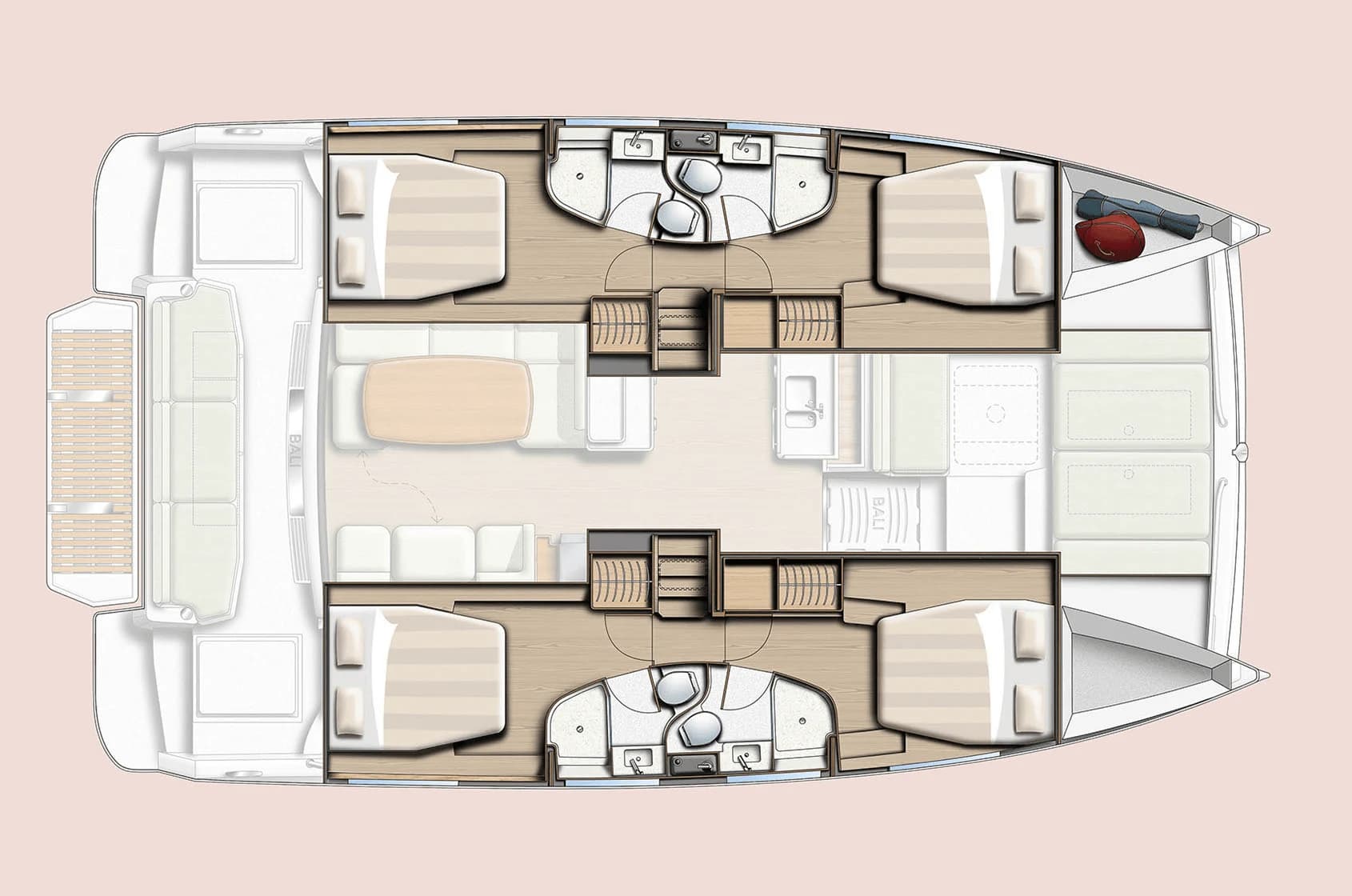

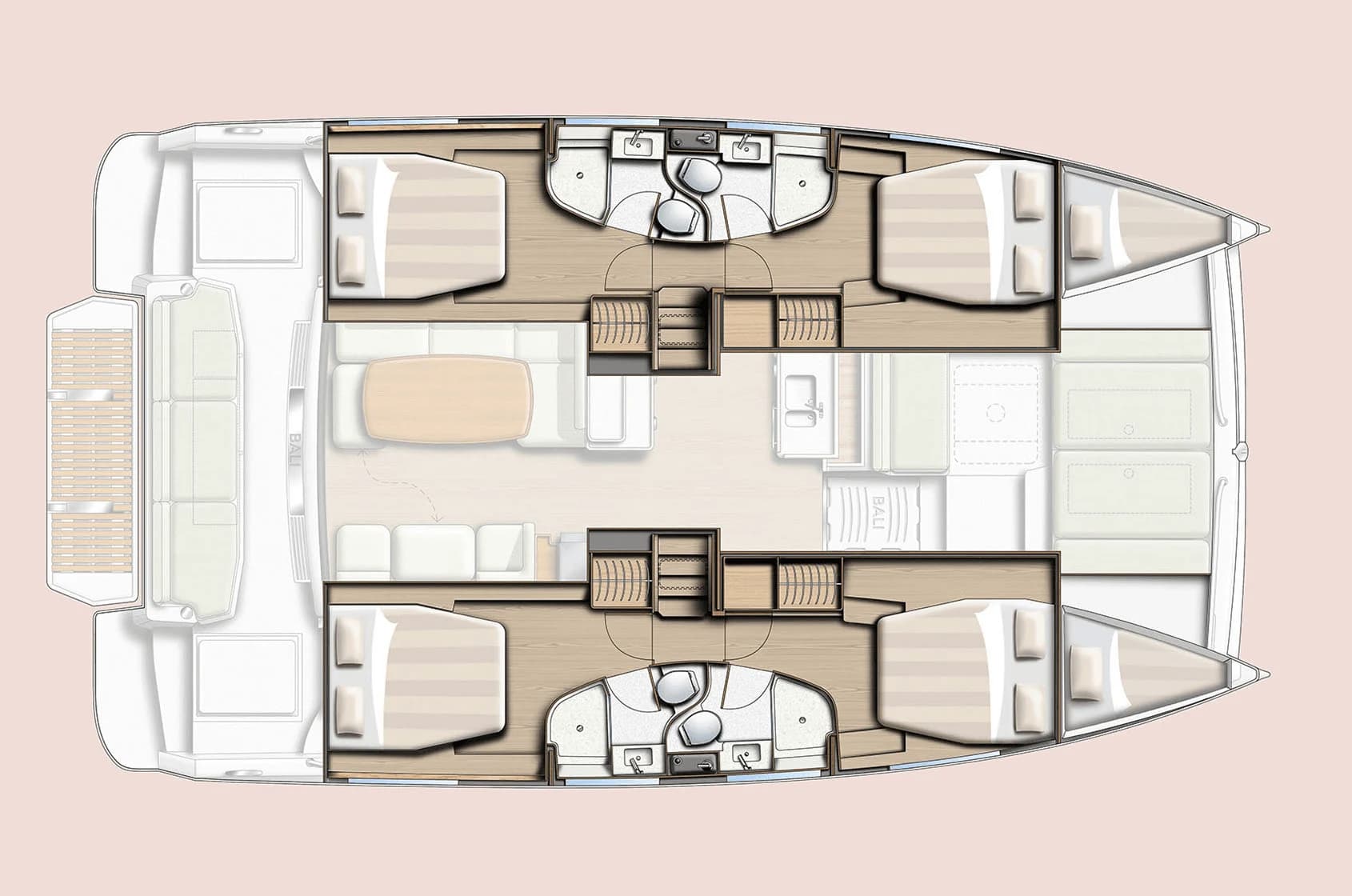

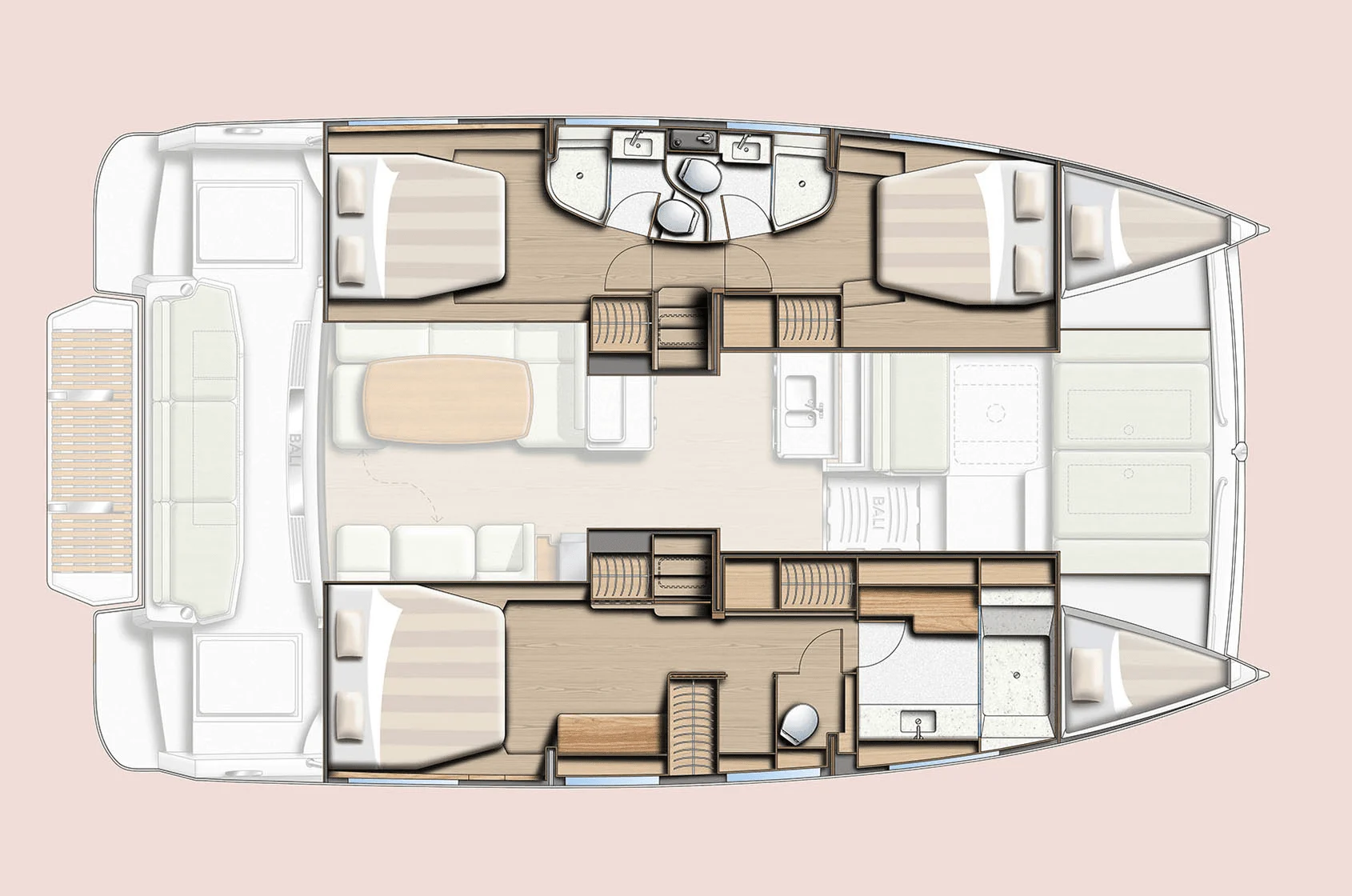

Buyers can compare three-cabin/three-bath and four-cabin/four-bath plans, using the supplied drawings to check how each arrangement allocates space. The owner’s version adds a large suite and dressing area; the documented conversion kit can change a four-cabin charter layout to three cabins through non-structural interior work. Earlier 4.3s may differ.

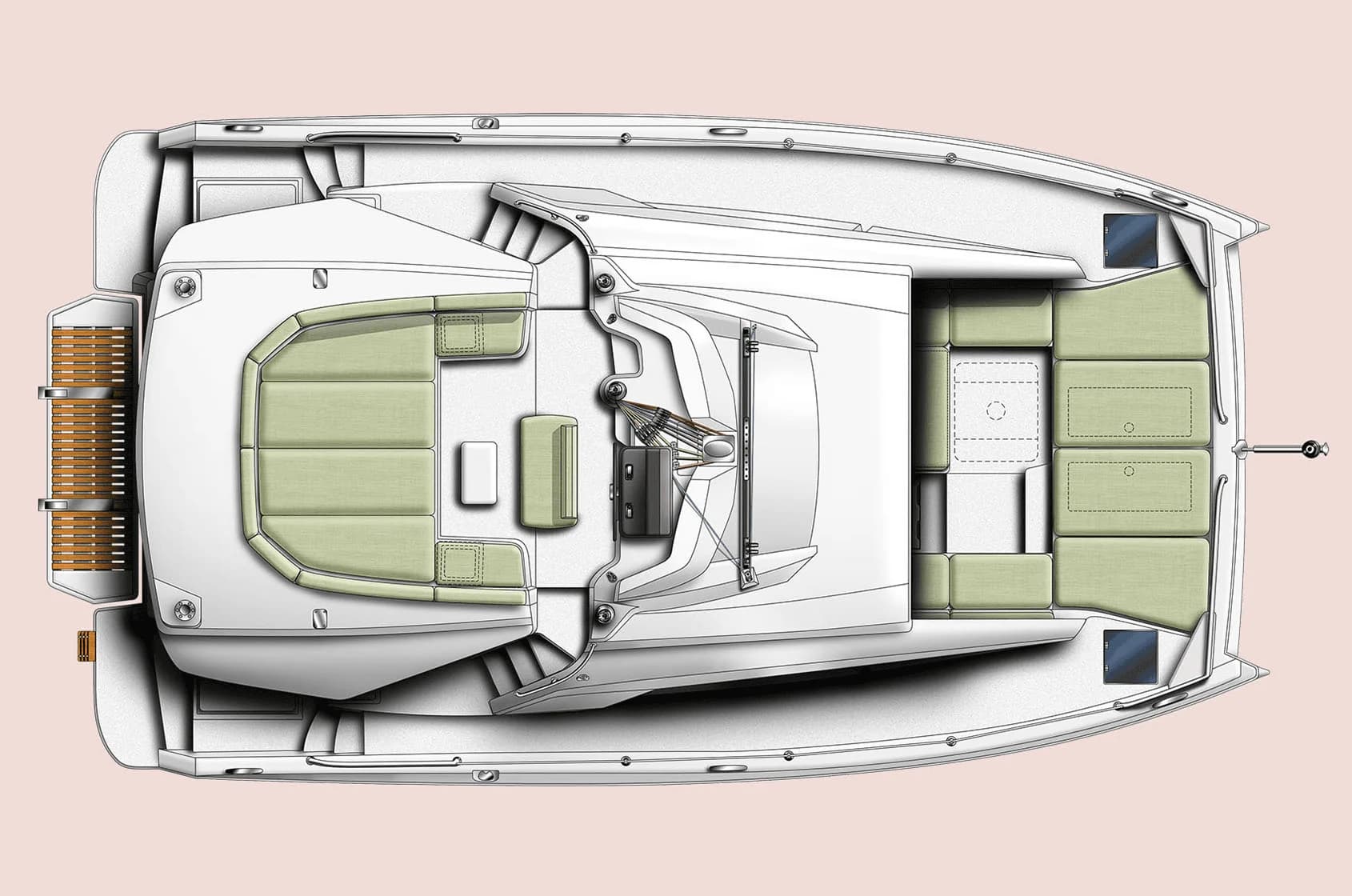

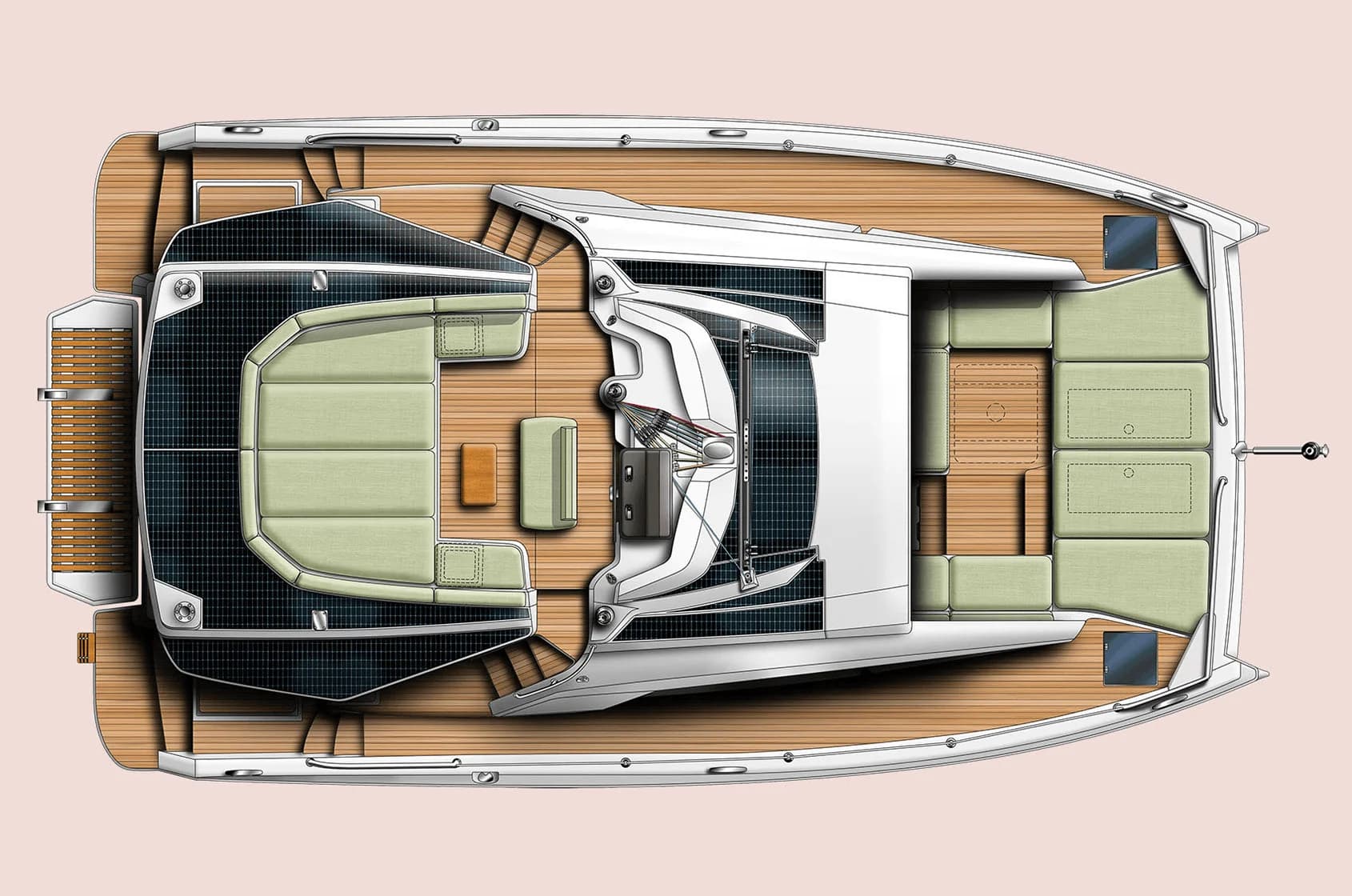

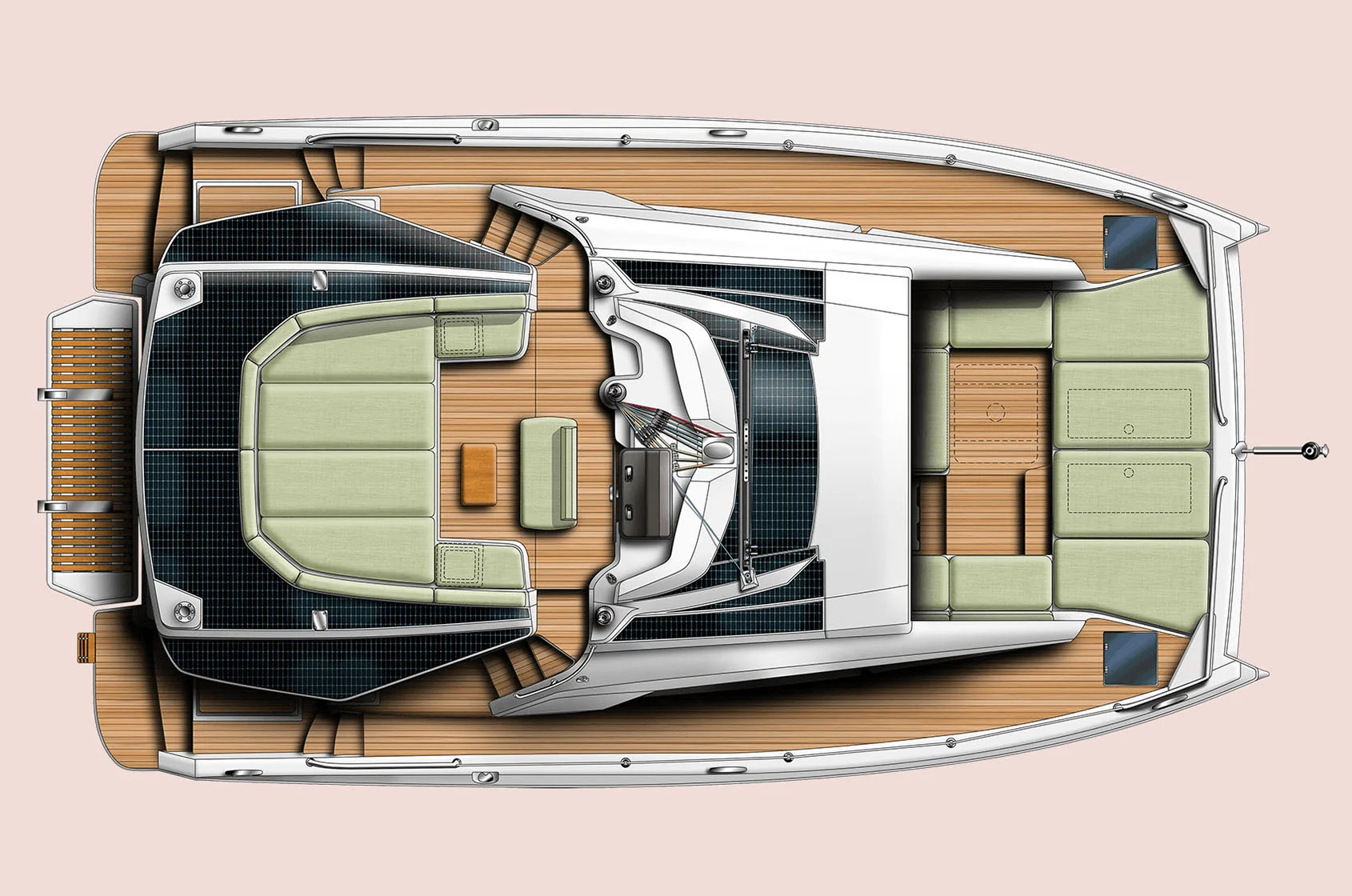

The flybridge combines helm, lounge and sunpad, with sheets and halyards led aft to the helm. Standard sail area: 108 m²; 122 m² is maximum. Twin 50 hp engines are specified, with options up to 59 hp. A 48 V lithium system and solar up to 3,000 W are configuration choices, not autonomy guarantees. CatamaranWorld recommends checking equipment options.

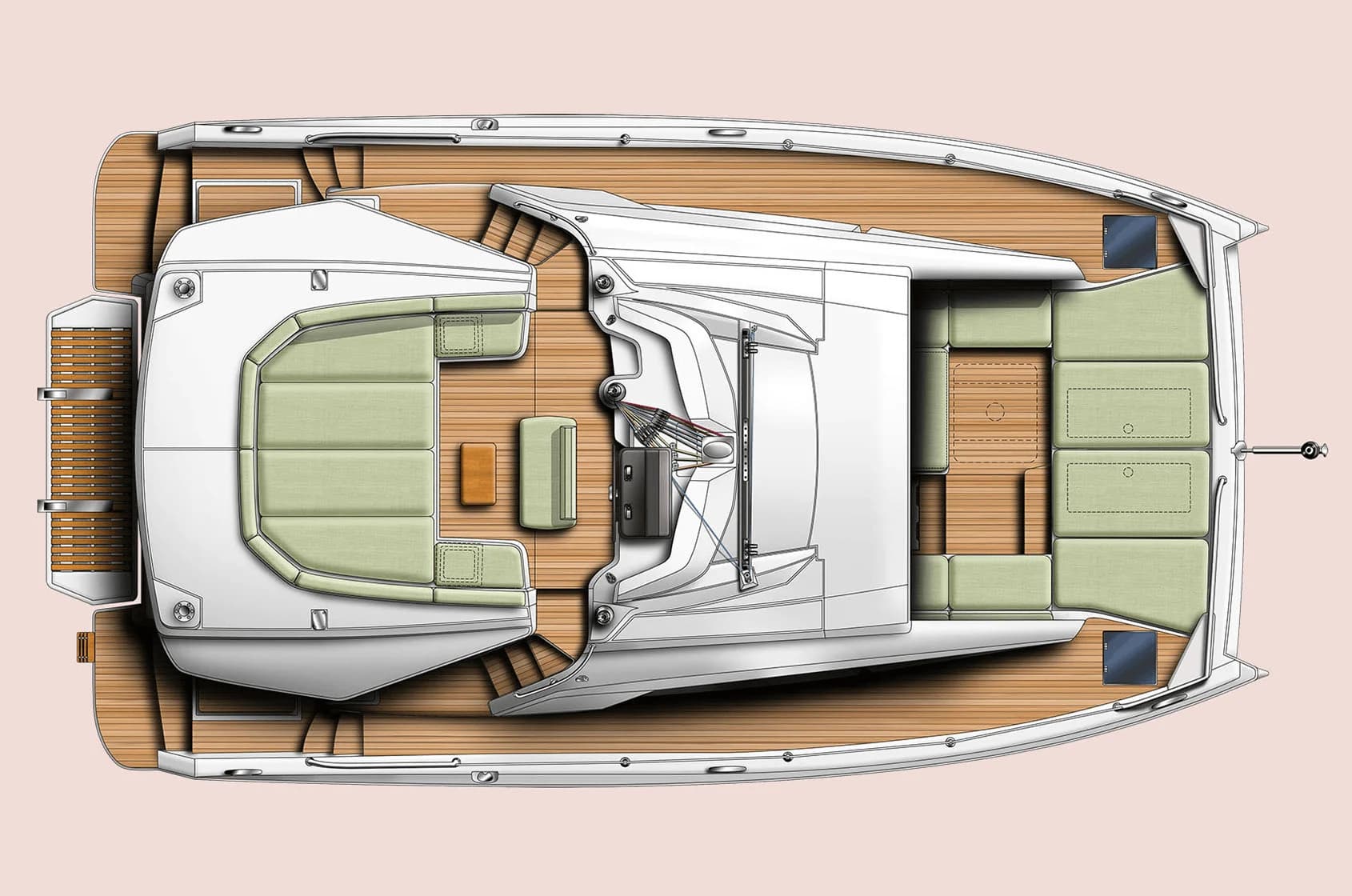

BALI 4.3 accommodation layouts

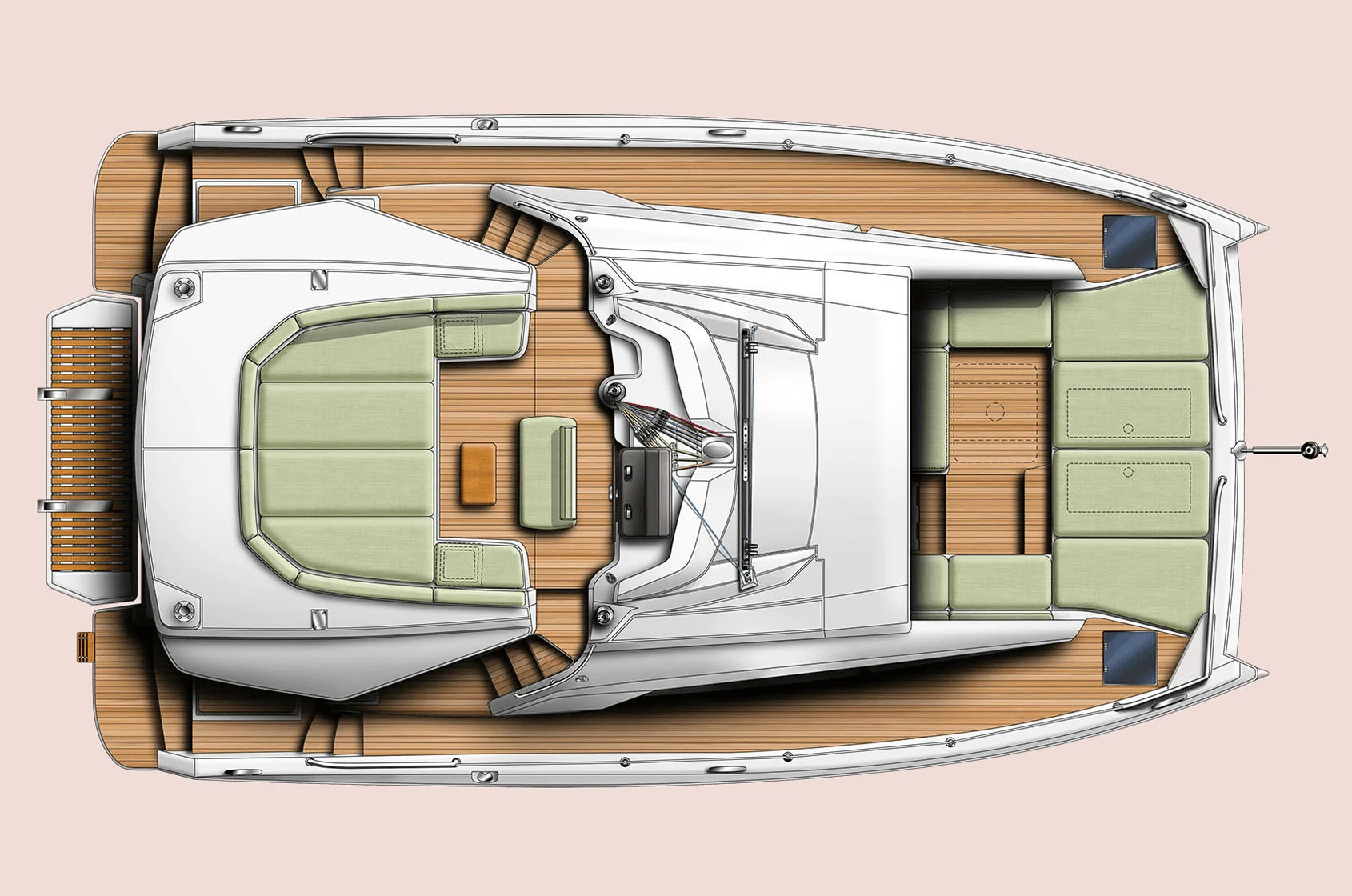

Manufacturer general-arrangement drawings. Open a plan for a closer look.

Manufacturer plan for this configuration. Open the drawing to compare accommodation, deck layout and circulation.

Manufacturer plan for this configuration. Open the drawing to compare accommodation, deck layout and circulation.

Manufacturer plan for this configuration. Open the drawing to compare accommodation, deck layout and circulation.

Manufacturer plan for this configuration. Open the drawing to compare accommodation, deck layout and circulation.

Manufacturer plan for this configuration. Open the drawing to compare accommodation, deck layout and circulation.

Manufacturer plan for this configuration. Open the drawing to compare accommodation, deck layout and circulation.

Manufacturer plan for this configuration. Open the drawing to compare accommodation, deck layout and circulation.

Manufacturer plan for this configuration. Open the drawing to compare accommodation, deck layout and circulation.
