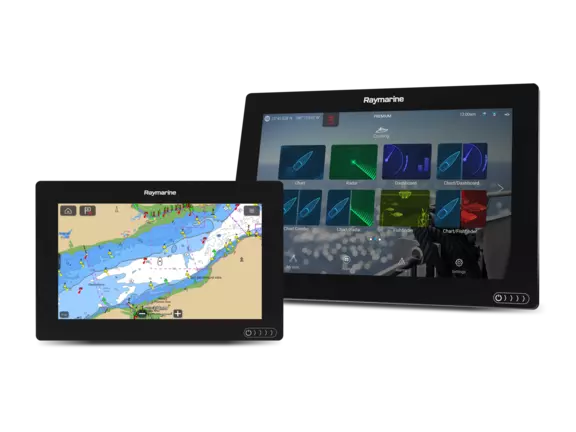

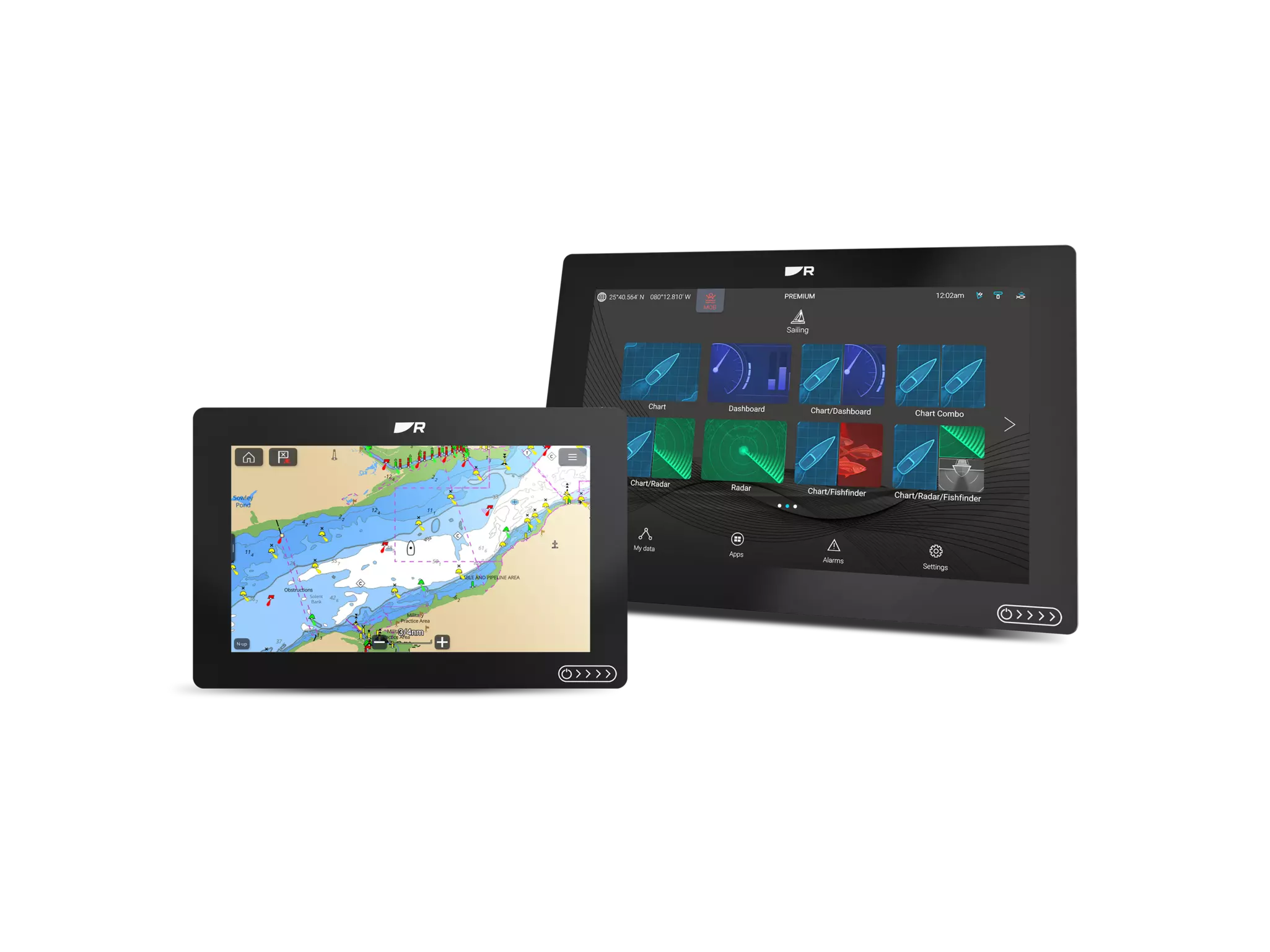

Axiom+ 12

Product overview

12" Display

Charts not included in this kit

Key specifications

Brand

Raymarine

OEM / part number

E70638

Category

Multifunction Displays

Dimensions (Trunnion mounted)

Axiom+ 7: Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in)Axiom+ 9: Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in)Axiom+ 12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in)

Dimensions (Surface/Flush mounted)

Axiom+ 7: Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in)Axiom+ 9: Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in)Axiom+ 12: Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in)

Accessory connection

USB Micro B

Ethernet connection

RayNet (10/100 Mbits/s)

External storage

MicroSDXC card slot x 1

NMEA 2000 connection

DeviceNet (male connector built into power cable)

Wireless connections

Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n

Transducer connection

25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers

Size (diagonal)

Axiom+ 7: 7"Axiom+ 9: 9"Axiom+ 12: 12"

Resolution

Axiom+ 7: WSVGA 1024 x 600Axiom+ 9: Widescreen HD 1280 x 720Axiom+ 12: WXGA 1280 x 800

Viewing angle

Axiom+ 7: Top 85° / Bottom 85° / Left 85° / Right 85°Axiom+ 9: Top 85° / Bottom 85° / Left 85° / Right 85°Axiom+ 12: Top 88° / Bottom 88° / Left 88° / Right 88°

Illumination

Axiom+ 7: 1800 nits / 1800 cd/m2Axiom+ 9:1500 nits / 1500 cd/m2Axiom+ 12: 1800 nits / 1800 cd/m2

Protective coating

HydroToughTM Oleophobic

Type

IPS (In-Plane Switching)

Color depth

24-bit

Number of simultaneous touches

2

Power consumption

Axiom+ 7: 7.34 WAxiom+ 9: 8.95 WAxiom+ 12: 18.96 W

Operating voltage range

8 V dc to 16 V dc

Fuse rating

7 A

Nominal supply voltage

12 V dc

LEN (NMEA 2000 Load Equivalency Number)

1

Operating temperature

-25°C to +55°C (-13°F to 131°F)

Storage temperature

-30°C to +70°C (-22°F to 158°F)

Relative humidity

Up to 93% @ 40°C (104°F)

Waterproof rating

IPx6, IPx7

Position Accuracy

Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time

Geodetic Datum

WGS-84 (alternatives can be selected on the MFD)

Satellite Differential Type (SBAS)

WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)

Channels

Track up to 28 satellites simultaneously

Antenna

Internal - Ceramic chip mounted near top of unit

Almanac Update

Automatic

Signal Acquisition

Automatic

Receiver IC Sensitivity

165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)

Operating frequency

1574 MHz to 1605 MHz

Refresh rate

10 Hz (10 times per second)

Time to first fix from cold start

< 2 minutes

IP

ipx6, ipx7
