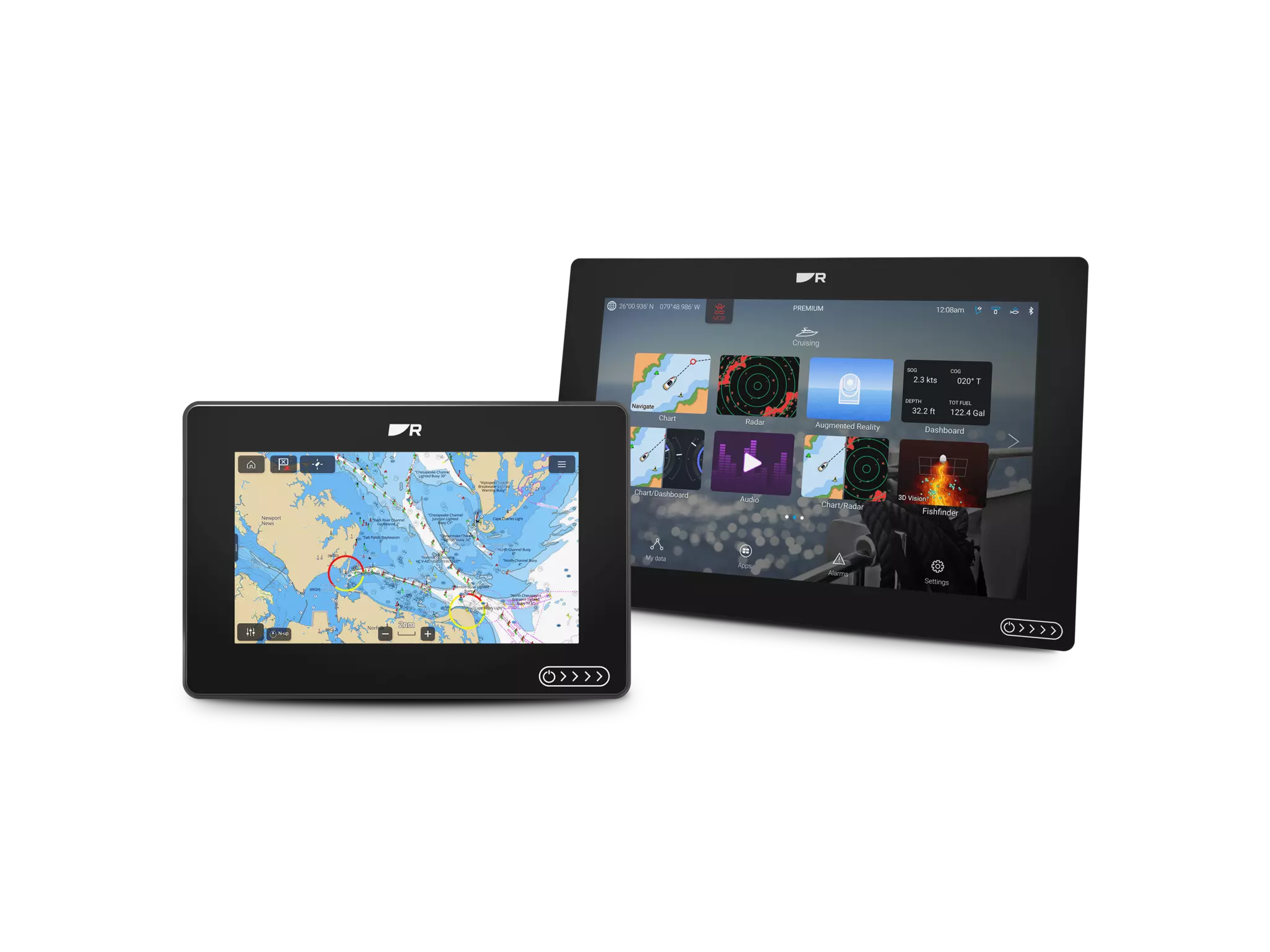

Axiom 2 | 12" Display | RealVision 3D Sonar

Product overview

Detailed product information has not been supplied. Include your requirements in an inquiry to Catamaran World.

Key specifications

Brand

Raymarine

OEM / part number

E70725

Category

Multifunction Displays

Dimensions (Trunnion mounted)

Axiom 2 7" Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in)Axiom 2 9" Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in)Axiom 2 12" Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in)

Dimensions (Surface/Flush mounted)

Axiom 2 7" Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in)Axiom 2 9" Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in)Axiom 2 12" Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in)

Accessory connection

USB Micro B

Ethernet connection

RayNet (10 / 100 / 1000 Mbit/sec Ethernet)

External storage

MicroSDXC card slot x 1

NMEA 2000 connection

DeviceNet (male connector built into power cable)

Wireless connections

Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n

Transducer connection

25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers

Operating temperature

-25°C to +55°C (-13°F to 131°F)

Storage temperature

-30°C to +70°C (-22°F to 158°F)

Relative humidity

Up to 93% @ 40°C (104°F)

Waterproof rating

IPx6, IPx7

Power consumption

Axiom+ 7: 9.84 WAxiom+ 9: 11.98 WAxiom+ 12: 18.96 W

Operating voltage range

8 V dc to 16 V dc

Fuse rating

7 A

Nominal supply voltage

12 V dc

LEN (NMEA 2000 Load Equivalency Number)

1

Resolution

Axiom 2 7: WSVGA 1024 x 600Axiom 2 9: Widescreen HD 1280 x 720Axiom 2 12: WXGA 1280 x 800

Display Brightness

Axiom 2 7: 1800 nits / 1800 cd/m2Axiom 2 9: 1500 nits / 1500 cd/m2Axiom 2 12: 1800 nits / 1800 cd/m2

Protective coating

HydroToughTMOleophobic

LCD Type

IPS (In-Plane Switching)

Position Accuracy

Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time

Geodetic Datum

WGS-84 (alternatives can be selected on the MFD)

Satellite Differential Type (SBAS)

WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)

Channels

Track up to 28 satellites simultaneously

Antenna

Internal - Ceramic chip mounted near top of unit

Almanac Update

Automatic

Signal Acquisition

Automatic

Receiver IC Sensitivity

165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)

Operating frequency

1574 MHz to 1605 MHz

Refresh rate

10 Hz (10 times per second)

Time to first fix from cold start

< 2 minutes

CHIRP Sonar Channels

RealVision 3D: (70 W / 350 kHz )SideVision: (70 W / 350 kHz )DownVision: (35 W / 350 kHz )CHIRP High: (100 W / 200 kHz )

Conventional Sonar Channels

50/200 kHz (600 W) Note: A 600 Watt conventional sonar transducer and adapter cable is required

Waypoints

Up to 10,000 waypoints can be stored in up to 200 waypoint groups

Routes

Up to 250 routes can be stored, each route can contain up to 500 waypoints. The route capacity limit is subject to your chartplotter’s 10,000 waypoint limit (for example, 20 routes can be stored each containing 500 waypoints).

Automatic Route Planning

Yes with Navionics charts or via the Orca mobile app

Tracks

Up to 15 tracks can be stored, each track can contain up to 10,000 track points.

Variant - screenize

12"

Variant - preloadedlighthousechart

No Chart

Variant - sonar_included

RealVision 3D Sonar

Variant - transom_transducer_included

No Transducer

IP

ipx6, ipx7
